How to Choose the Right Electrical Breakers?

Choosing the right electrical breakers is not a matter of matching a label to a panel. It requires a careful look at circuit load, conductor size, equipment ratings, and the building’s actual conditions. A breaker that trips too easily can disrupt daily life. One that trips too slowly may allow wires to overheat behind a wall. That hidden risk is easy to underestimate.

Mike Holt, a respected electrical educator, expresses the core principle clearly: “A circuit breaker is a safety device, not a convenience device.” His point matters when selecting electrical breakers for homes, workshops, offices, and industrial spaces. The correct breaker must protect the wiring first. It must also suit the system’s voltage, interrupting capacity, number of poles, and trip characteristics. A 20-ampere breaker, for example, should not be used to compensate for undersized conductors. The rating belongs to the complete circuit, not one isolated component.

This guide examines the decisions professionals make before installation. It considers standard breakers, GFCI and AFCI protection, thermal-magnetic operation, ambient temperature, and available fault current. Small details matter. A crowded panel can retain heat. A long cable run can create voltage drop. An older installation may contain surprises that no product label reveals.

There is no perfect shortcut.

Even experienced electricians can miss a detail when documentation is incomplete. That is why measurements, manufacturer instructions, and local inspection requirements deserve attention. This discussion is educational, not a substitute for evaluation by a qualified electrician. The safest choice is the one supported by evidence, compatible equipment, and a willingness to reconsider an attractive but unsuitable option.

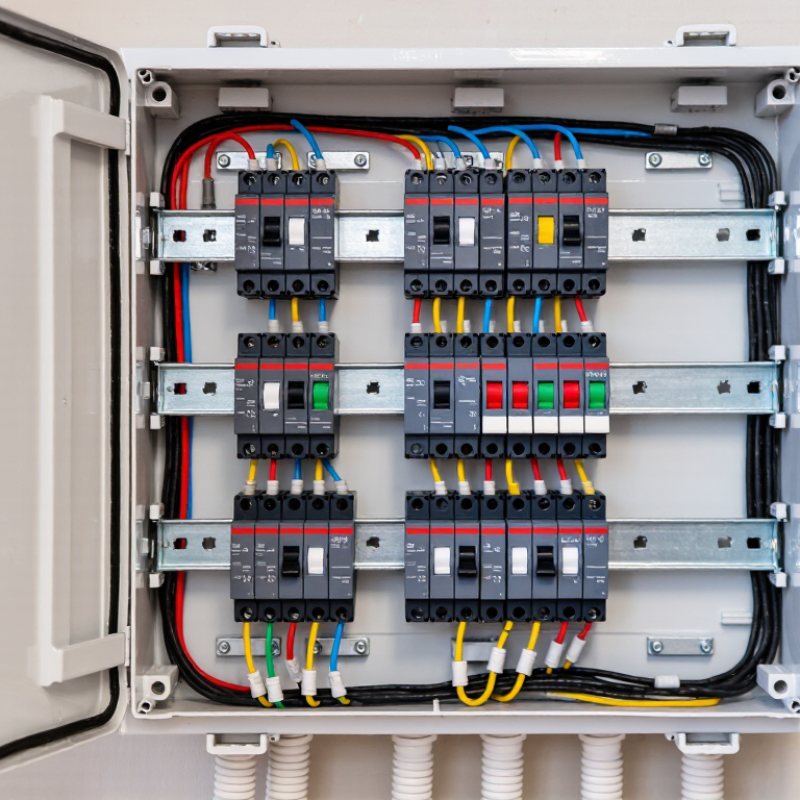

How to Choose the Right Electrical Breakers?
Table of Contents [Hide]
1 Understanding Electrical Breaker Types and Their Applications
2 Assessing Voltage, Current, and Circuit Requirements
3 Selecting the Correct Breaker Size and Trip Characteristics
4 Checking Compatibility, Safety Standards, and Installation Conditions
5 Comparing Breaker Features, Quality, and Maintenance Needs

Understanding Electrical Breaker Types and Their Applications

Choosing the right electrical breaker starts with the circuit’s real duty, not its appearance. Miniature circuit breakers suit household branch circuits and protect against overloads and short circuits. Molded-case breakers handle larger commercial feeders, higher currents, and adjustable trip settings. Residual-current devices add protection against earth-leakage shock, but they do not replace overcurrent protection. Arc-fault protection can detect dangerous arcing that ordinary breakers may miss.

Application details matter. A motor circuit may experience a brief starting surge, while a heater creates a steady load. The breaker must tolerate normal operation and still trip quickly during a fault. Check voltage, continuous current, interrupting capacity, pole configuration, and conductor size. IEC 60898-1 covers many low-voltage circuit breakers for domestic use, while IEC 60947-2 addresses broader industrial applications. NFPA research on home electrical fires has repeatedly identified electrical distribution and lighting equipment as a significant fire source, with thousands of incidents reported annually in the United States. The figures are sobering, though installation conditions can vary widely.

Tips: Read the panel schedule and measure the actual load. Do not increase breaker size to stop nuisance tripping. Verify the available fault current with a qualified electrician. A breaker that fits physically may still be electrically unsuitable. I have seen that mistake during rushed maintenance work. It looked correct. It was not. Recheck local code requirements, terminal torque, and protective coordination before energizing the circuit.

How to Choose the Right Electrical Breakers?

Understanding electrical breaker types and their applications

How to read the chart: The values show representative maximum rated currents commonly found in IEC low-voltage product ranges. Actual ratings depend on the installation design, fault level, temperature, enclosure, and applicable electrical code.

  • MCB: Commonly used for final circuits in homes and small commercial installations.
  • RCBO: Combines overcurrent protection with residual-current protection for individual circuits.
  • RCCB/RCD: Provides residual-current protection but requires a separate overcurrent protective device.
  • MCCB: Suitable for higher-current feeders, commercial systems, industrial equipment, and motor circuits.
  • ACB: Used as a main incomer or distribution breaker in large low-voltage switchboards.

Assessing Voltage, Current, and Circuit Requirements

Choosing an electrical breaker starts with voltage, not convenience. Match the breaker’s rated voltage to the circuit’s supply and equipment requirements. A 120-volt lighting circuit needs different protection from a 240-volt heating circuit. Check the panel label, conductor insulation, and local installation rules before selecting a device.

Current demand requires careful measurement. Add the normal loads, then consider motors, compressors, and heating elements that draw more during startup. A circuit carrying 18 amperes continuously should not be protected by simply guessing a 20-ampere breaker. Conductor size, ambient temperature, and installation method also affect allowable current. IEC 60364-4-43 emphasizes coordinated overcurrent protection, while NFPA research reports about 32,600 U.S. home fires annually involving electrical distribution and lighting equipment from 2016–2020. The reported average included roughly 470 deaths and 1,100 injuries.

Circuit requirements extend beyond voltage and amperage. Determine whether the circuit needs ground-fault or arc-fault protection, a shared-neutral arrangement, or dedicated protection for sensitive equipment. A kitchen appliance, outdoor receptacle, and industrial motor rarely deserve the same selection process. Short-circuit rating matters too; the breaker must safely interrupt the available fault current at the installation point. A tidy load calculation can still be wrong if future equipment is ignored. Recheck the circuit after installation, especially when cables feel warm or breakers trip repeatedly. Tripping is information. Don’t defeat it.

Selecting the Correct Breaker Size and Trip Characteristics

How to Choose the Right Electrical Breakers?

Selecting the correct breaker begins with the conductor, not the appliance. Its ampere rating must protect the wire from overheating. Calculate the expected load, then apply local code requirements. For continuous loads, many installations require 125% of the calculated load under NEC 210.20(A). A 16-amp continuous load may therefore need a 20-amp circuit.

Trip characteristics matter just as much. Thermal protection responds to sustained overloads. Magnetic protection reacts quickly to short circuits. Motors, transformers, and compressors can draw high starting current. A breaker with an unsuitable instantaneous trip setting may nuisance-trip at startup. IEC 60898-1 and IEC 60947-2 define different performance categories, so the selected device must match the system and fault conditions.

NFPA reported an average of 35,150 U.S. home fires involving electrical distribution and lighting equipment each year from 2012 to 2016. These fires caused about 470 civilian deaths and $1.3 billion in property damage. The figures show why “close enough” is not a safe design method.

Tips: Read the panel schedule and conductor markings. Confirm the wire’s allowable ampacity, ambient temperature, and installation method. Check the breaker’s interrupting rating against the available fault current. For motor circuits, review the manufacturer’s starting-current data. A larger breaker is not a solution for frequent tripping. That assumption is common, and it is wrong. Have a qualified electrician verify questionable calculations, especially in older panels where labels may be incomplete.

Checking Compatibility, Safety Standards, and Installation Conditions

How to Choose the Right Electrical Breakers?

Breaker selection starts with compatibility, not appearance. Check the system voltage, available fault current, conductor size, and panel configuration. A breaker must fit the intended enclosure and match the circuit’s load characteristics. A 20-ampere breaker on undersized wiring can overheat the conductor before tripping. That is a dangerous mismatch.

Safety standards matter. IEC 60898-1 covers many household and similar circuit breakers, while IEC 60947-2 addresses broader industrial applications. Confirm the breaker’s interrupting rating against the prospective short-circuit current.

NFPA’s Electrical Fires report recorded about 35,150 home fires annually from 2015 to 2019. These incidents caused approximately 470 civilian deaths and 1,100 injuries. The figures make careful verification more than paperwork.

Installation conditions can change the decision. Inspect ambient temperature, moisture, dust, altitude, and available working space. A hot electrical cabinet may require derating, depending on the equipment instructions and local requirements.

In practice, I also check terminal torque and conductor stripping length. Small installation errors can create invisible heat. The label helps, but it is not proof of a correct installation.

IEC 60364 principles support protection against overload, short circuits, and electric shock, yet site conditions still require judgment. Sometimes the first choice looks correct and fails after a closer inspection.

A qualified electrician should verify the final selection and testing.

Comparing Breaker Features, Quality, and Maintenance Needs

Choosing an electrical breaker requires more than matching its ampere rating. Compare the interrupting capacity with the available fault current at the installation point. An overload breaker may look suitable but fail under a severe short circuit. Check voltage limits, pole configuration, trip characteristics, and compatibility with the panel. Clear markings and complete technical documents are practical signs of dependable quality.

Construction details matter during inspection. A firm operating handle, even movement, and a well-fitted housing suggest careful manufacturing. Heat-resistant materials reduce concerns inside crowded panels. I also examine terminal design and published tightening values. Loose connections create heat slowly, often without obvious warning. A breaker with useful status indicators can make troubleshooting faster, but indicators never replace electrical testing.

Maintenance needs should influence the purchase decision. In dusty or damp locations, inspect for corrosion, discoloration, unusual smells, and repeated tripping. Keep a simple service record with dates, test results, and circuit changes. Qualified electricians should perform live testing and internal panel work. I have learned not to judge quality by appearance alone. One expensive-looking breaker may offer weak documentation, while a plain model may provide clearer ratings and easier servicing. Selection still deserves careful review.
